Flame Retardant Fiber Safety Standards — NFPA 701, UL 94, EN 13501 & More

Specifying flame retardant polyester fiber for a commercial or consumer product is only half the task. The other half is confirming that the fiber — and the finished product — meets the specific fire safety standard required for its intended application and target market. The landscape of FR standards is fragmented across industries and regions, which makes this more complex than it might initially appear.

This guide explains the most important FR textile standards, what they test, and which applications they apply to.

Why Flame retardant FR standards matter

A product labeled “flame retardant” without any standard reference is essentially unverifiable. FR standards provide a common, independently tested benchmark that buyers, specifiers, regulators, and insurers can rely on. They define exactly what conditions a material must survive — the type of ignition source, the duration of exposure, the acceptable rate of burning, and the self-extinguishing requirement — so that “flame retardant” means the same thing across suppliers and markets.

When sourcing FR polyester fiber, always ask for the specific standard certification, not just the FR claim.

NFPA 701 — USA, textiles in public spaces

NFPA 701 is published by the National Fire Protection Association and is the primary US standard for flame resistance testing of textiles used as draperies, curtains, and other hanging textile materials in public buildings—including theaters, hotels, convention centers, schools, and event venues. It defines small-scale and large-scale test methods that assess flame spread and char length after a defined ignition exposure. Compliance with NFPA 701 is typically required by local fire codes for any textile used in these environments.

UL 94—USA, plastics and synthetic materials

UL 94 is published by Underwriters Laboratories and classifies the flammability of plastic and synthetic materials used in device and appliance housings, as well as components in transportation, electronics, and industrial equipment. It rates materials from V-0 (highest performance — self-extinguishes within 10 seconds, no dripping) down to V-2 (self-extinguishes within 30 seconds, dripping is permitted). FR polyester fiber used in automotive and electronic applications is commonly evaluated against UL 94.

EN 13501 — Europe, construction products

EN 13501 is the European fire classification system for construction products and building elements. It classifies materials from A1 (non-combustible) through F (no performance determined) using reaction-to-fire test methods. FR polyester insulation batts, acoustic panels, and underlays used in commercial construction across European Union member states typically need to be classified under EN 13501 to comply with building regulations.

BS 5852 — UK, upholstered furniture

BS 5852 is the British Standard for fire resistance testing of upholstered furniture—primarily sofas, chairs, and bed bases. It uses cigarette and match ignition sources (and, in higher test levels, open flame sources) to assess how well upholstered composites resist ignition and limit flame spread. FR polyester fiber used as filling or batting in residential and contract furniture manufactured for the UK market must meet BS 5852 requirements. This is one of the most commercially significant standards for FR fiber in the home furnishings sector.

ISO 15025—International, protective clothing

ISO 15025 defines test methods for protective clothing against heat and flame—specifically evaluating limited flame spread performance. It is an internationally recognized standard used by manufacturers of FR workwear and occupational protective garments to demonstrate compliance with the personal protective equipment (PPE) requirements in markets around the world.

OEKO-TEX Standard 100 — International, chemical safety

OEKO-TEX Standard 100 is not a fire safety standard—it is a product safety certification that tests finished textiles for the presence of harmful substances, including certain flame retardant chemicals. This is particularly important because some older FR chemical systems (particularly halogenated compounds) have been identified as health hazards. OEKO-TEX certification confirms that the FR chemistry used in the fiber is within approved limits for direct skin contact products. For FR polyester used in bedding, childcare products, and workwear, OEKO-TEX certification alongside fire performance certification gives buyers confidence in both fire safety and chemical safety.

REACH — Europe, chemical regulation

REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) is the European Union’s primary chemicals regulation framework. It restricts the use of certain harmful FR chemicals—particularly specific brominated flame retardants—in products sold in the EU market. FR polyester fiber sold into Europe should comply with REACH restrictions, and buyers should confirm this with their fiber supplier.

Choosing the right standard for your application

The correct standard depends on your product type, end market, and regulatory environment. Drapery for a US hotel requires NFPA 701. Upholstered furniture for the UK market requires BS 5852. Construction insulation for European buildings requires EN 13501. Workwear for international markets may require ISO 15025. And for any FR product going into sensitive applications, OEKO-TEX and REACH compliance add an important layer of chemical safety assurance.

Always consult with your FR fiber supplier about the specific certifications held by the fiber you are purchasing, and verify that those certifications cover the test method and performance level required by your application.

For a full overview of FR polyester fiber—including its types, how it works, and its applications—visit our product: Flame Retardant Polyester Staple Fiber

Click here to visit Part 5: Limitations of Flame Retardant Polyester Fiber — What You Need to Know

Part 3: FR Polyester vs. Other Flame Retardant Fibers — A Complete Comparison

Leave a Reply


Comment on Facebook

VNPOLYFIBER - Polyester Fiber Partners from Asia

We are a leading exporter of recycled polyester staple fiber—including hollow conjugated fiber, hollow slick fiber, solid fiber, low melting fiber, and many other polymer fibers since 2017. With a wide-reaching network of trusted suppliers across China, Vietnam, Malaysia, Thailand, and Indonesia, we have successfully exported to over 30 countries, serving more than 200 clients, many of whom have a strong presence in North America, South America, and the EU. We provide One Stop Solution for Polyester Staple Fiber, Nonwoven Fabric and Home Textile Materials

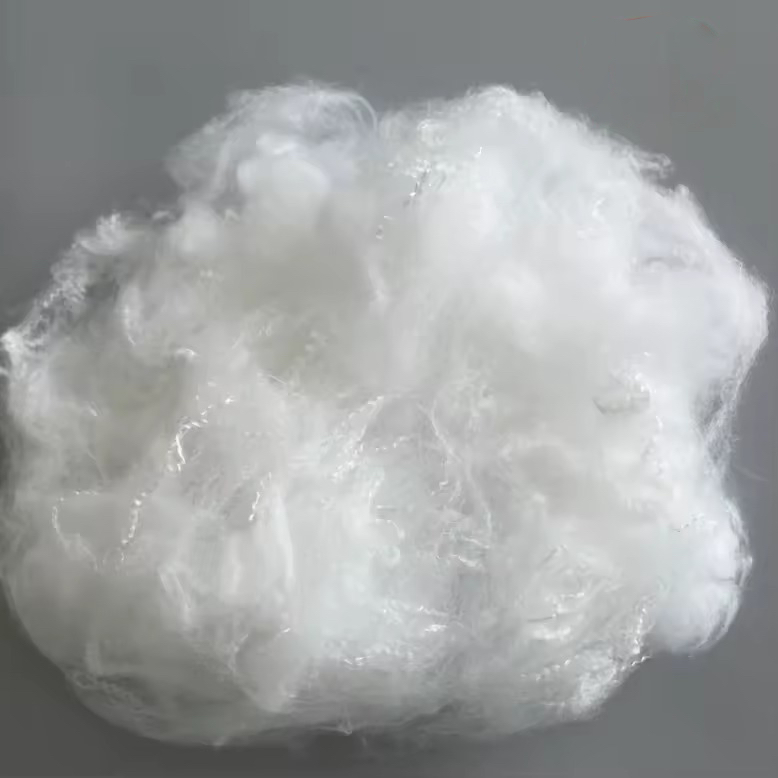

Hollow Conjugated Siliconized Polyester Staple Fiber 1231411
